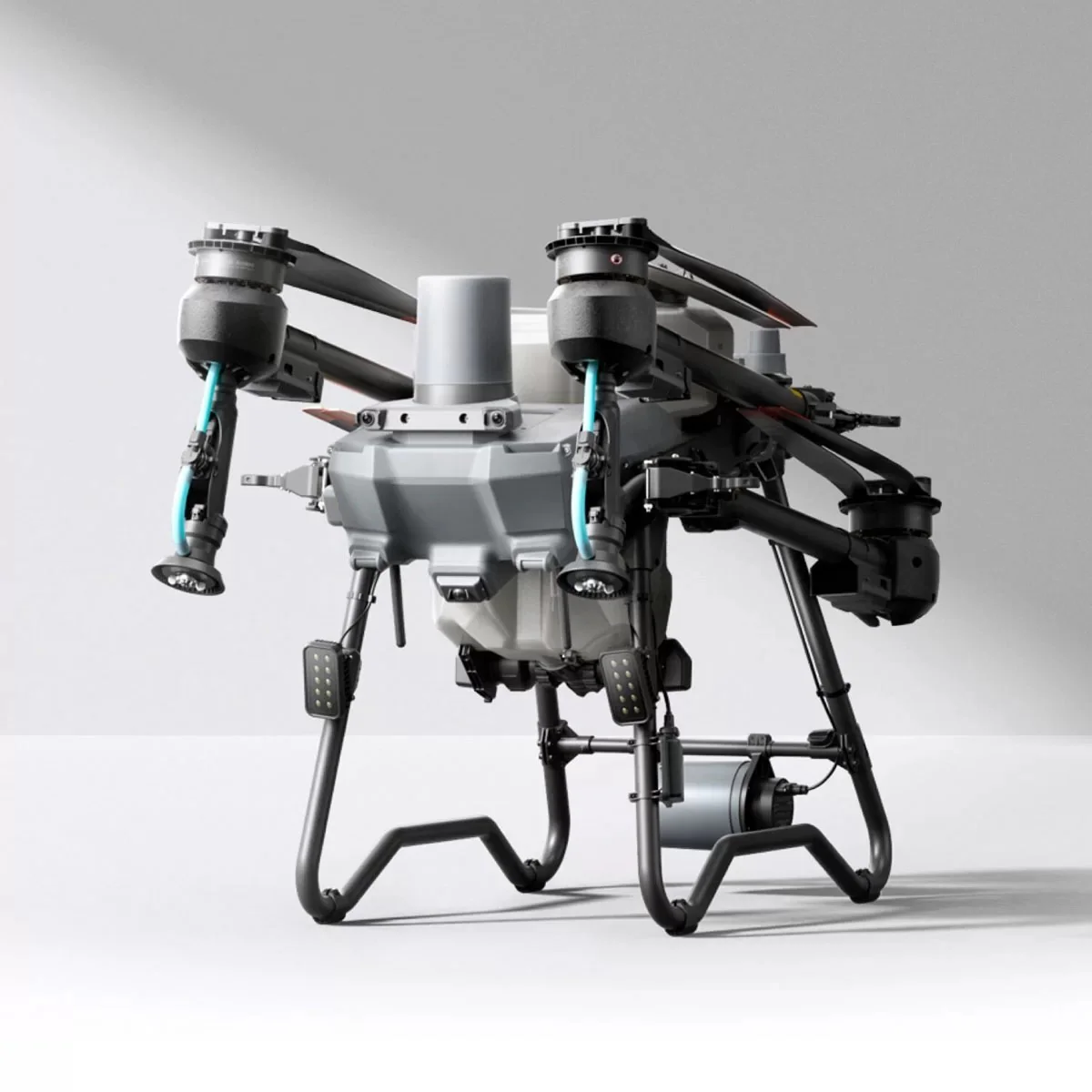

🚁 DJI Agras T25P – Overview

The DJI Agras T25P is a lightweight, foldable agricultural drone built for:

• Crop spraying
• Fertilizer spreading
• Aerial mapping

👉 It is ideal for individual farmers and small-to-medium farms, unlike larger models like the T50 or T100.

🔥 Key Features

• 20 kg spraying payload
• 25 kg spreading capacity
• Compact and easy to transport
• Fully automated flight & mapping
• Advanced Safety System 3.0 (radar + vision)

⚙️ Main Specifications

✈️ Aircraft & Flight

• Weight:
  • 26 kg (without battery)
  • 33 kg (with battery)
• Max takeoff weight:
  • 53 kg (spraying)
  • 60 kg (spreading)
• Max flight radius: 2 km
• Wind resistance: < 6 m/s
• RTK positioning accuracy: ±10 cm

🧪 Spraying System

• Tank capacity: 20 liters
• Payload: 20 kg
• Flow rate:
  • 16 L/min (2 nozzles)
  • 24 L/min (4 nozzles)
• Spray width: 4 – 7 meters
• Droplet size: 50 – 500 μm

🌾 Spreading System

• Tank capacity: 30 liters
• Payload: up to 25 kg
• Max discharge rate: 190 kg/min
• Spreading width: 3 – 8 meters

🔋 Battery & Power

• Battery model: DB800 Intelligent Flight Battery
• Capacity: 15,500 mAh
• Voltage: 52.22 V
• Charging time: ~9–12 minutes (fast charging)

🧠 Safety & Sensors

• 360° obstacle detection
• Millimeter-wave radar + tri-camera vision
• Detection range: up to 60 m
• Safe obstacle avoidance speed: ≤ 10 m/s

📡 Remote Controller

• Model: TKPL 2
• Screen: 7-inch touchscreen (1920 × 1200)
• Battery life: ~3–4 hours

📏 Design & Build

• Foldable design (easy transport)
• Wheelbase: 1970 mm
• Propellers: 50-inch carbon fiber (4 rotors)

✅ What Makes T25P Special

• Perfect for solo operation (Fly Solo system)
• Compact but still powerful (20–25 kg payload)
• Fast charging = high productivity
• Easy to move between farms
• Lower cost compared to bigger drones
